Introduction of Cattle Feed Making Machine
Cattle feed pellet machine is a commonly used mechanical equipment in the livestock breeding industry. It can process various feed raw materials into pellets to provide cattle with balanced nutrition and good palatability. The machine can produce different types of feed pellets, such as corn, wheat, barley, grass, etc.
Working Principle
Raw material pretreatment: Mix different feed materials such as corn, soybean meal, bran, hay, etc. according to the formula ratio. The pretreated raw materials enter the feed port of the pellet machine and are transported to the extrusion chamber through the screw feeder. The extruded long feed is then cut by the cutter device according to the set length and cut into uniform feed pellets.
Product Information
|
Model |
WSJY-40 |
WSJY- 50 |
WSJY-60 |
WSJY-70 |
WSJY-80 |
WSJY-90 |
WSJY-120 |
WSJY-135 |
WSJY-160 |
WSJY-200 |
|
Capacity --- kg/h |
30-40 |
60-80 |
120-150 |
180-250 |
300-350 |
400-450 |
500-700 |
800-1000 |
1200-1500 |
1800-2000 |
|
Pelleting Diameter--- mm |
1-8 |
1-8 |
1 -10 |
1-10 |
1 -10 |
1 -10 |
1-10 |
1 –12 |
1-12 |
1-12 |
|
Motor Power--- kw |
5 |
7.5 |
15 |
18.5 |
22 |
37 |
55 |
75 |
90 |
132 |
|
Cutting Power--- w |
400 |
400 |
400 |
400 |
1100 |
1500 |
2200 |
2200 |
2200 |
3000 |
|
Screw Rod Diameter-- mm |
40 |
50 |
60 |
70 |
80 |
90 |
120 |
135 |
160 |
200 |
|
Cooking degree |
>95% |
>95% |
>95% |
>95% |
>95% |
>95% |
>95% |
>95% |
>95% |
>95% |
|
Size(m) |
1.4*1.03*1.1 |
1.45*1.08*1.25 |
1.46*1.14*1.25 |
1.6*1.4*1.35 |
1.6*1.4*1.35 |
2.1*1.45*1.35 |
2.1*1.45*1.35 |
2.55*2.05*1.65 |
2.9*2.65*1.8 |
3*2.85*1.9 |
|
Weight(kg) |
260 |
350 |
355 |
580 |
700 |
950 |
1700 |
1900 |
3600 |
4300 |

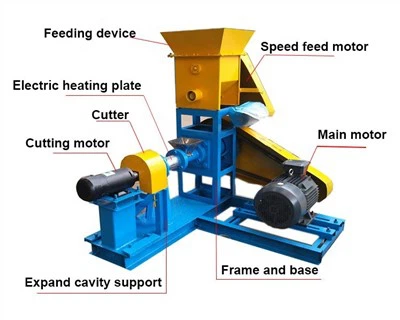

Structural of Cattle Feed Making Machine
Feeding system: includes a feed hopper and a screw feeder. The feed hopper is used to hold the mixed feed raw materials, and the screw feeder is responsible for delivering the raw materials into the extrusion chamber at a stable and uniform speed.
Extrusion system: This is the core part, consisting of a screw, an extrusion chamber, and a die plate. The screw is made of hard and wear-resistant material, and its rotation generates extrusion force.
Power system: Generally an electric motor, which provides power for the entire pelletizing process of the pellet machine.
Control system: The operator can adjust parameters such as feed speed, screw speed, and cutter frequency.
Application of Cattle Feed Making Machine
Small-sized farmers: Individual cattle farmers in rural areas can use small feed pellet machines to make their own exclusive feed according to the number of cattle and growth stage, which is cost-controlled and more in line with actual breeding needs.
Medium-sized farms: These farms have a large number of cattle and are equipped with medium-sized feed pellet machines, which can produce feed in batches, unify feed standards, ensure breeding quality, and improve management efficiency.
Large-scale livestock enterprises: Large-scale enterprises with hundreds or thousands of cattle rely on large and efficient feed pellet machines to meet the massive feed needs of large-scale breeding and realize automated and standardized production.
Advantages of our factory
We pursue the goal of excellence and constantly lead the development of new technologies and new products. Our factory adopts advanced production equipment and has a strict production management system. We provide comprehensive, high-quality and convenient pre-sales and after-sales services.
