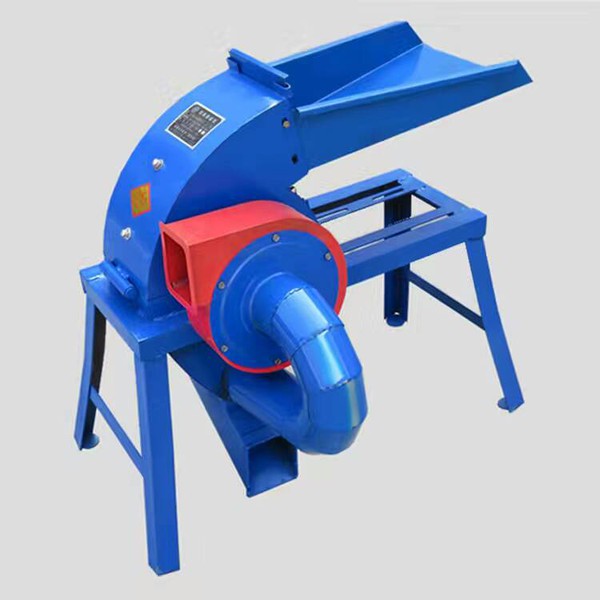

Introduction of Small Farm Feed Grinder
Grain grinder is a kind of mechanical equipment commonly used in grain processing. It can grind various grains into fine powder efficiently and is easy to operate. It is the best choice for factories. This grinder is suitable for crushing sawdust, wood shavings, branches, wood chips and various crop straws.
Structure of grinder
Feed port: located at the top of the machine, in a funnel shape, convenient for pouring grain raw materials.
Grinding chamber: This is the core component, with high strength and wear resistance. A high-speed rotating rotor is installed in the chamber, and multiple hammers are tightly connected to the rotor. Driven by the motor, it rotates rapidly, exerting a huge impact force on the grains entering the grinding chamber to achieve grinding.
Transmission device: includes motors, pulleys, belts and other components. The motor, as a power source, provides strong power, and through the transmission of pulleys and belts, accurately drives the rotor to rotate at high speed.
Discharge port: located below the grinding chamber, it is an inclined design to facilitate the smooth flow of ground grain powder.
Working Principle of Small Farm Feed Grinder
After the grains enter the grinding chamber from the feed port, the high-speed rotating hammers quickly hit them, and the grains are broken into pieces due to the violent impact. Then, driven by the hammers, the pieces repeatedly collide and rub against the inner wall of the grinding chamber and the screen, and continue to be refined. Finally, they are discharged from the discharge port and become grain powder that meets the requirements.
Technical information of feed grinder
|
Model of small farm feed grinder |
Power |
Output (kg/h) |
Weight (kg) |
Number of 20 Container |
|
|
Motor (kW) |
Diesel Engine (HP) |
||||
|
GMEC-160 |
1.5kw /220v,50hz |
6HP |
50-200 kg/h |
74 kg |
210 sets |
|
GMEC-230 |
2.2kw /220v,50hz |
6HP |
150-560 kg/h |
80 kg |
180 sets |
|
GMEC-270 |
7.5kw /380v,50hz |
12HP |
250-800 kg/h |
188 kg |
42 sets |
|
GMEC-360 |
11kw /380v,50hz |
15HP |
400-1800 kg/h |
280 kg |
24 sets |
|
GMEC-500 |
22kw /380V,50hz |
30HP |
1000-3000 kg/h |
720 kg |
6 sets |
|
GMEC-600 |
30kw /380v,50hz |
1100-3200 kg/h |
800 kg |
6 sets |
|
|
GMEC-800 |
55kw /380v,50hz |
2000-8000 kg/h |
1200 kg |
5 sets |
|
Applications of Small Farm Feed Grinder
Home Kitchen: Hammer mills can meet the needs of homemade flour and rice flour for baking, making special snacks, etc.
Small workshops: Small grain processing workshops in rural areas use this type of mill to process grain for surrounding villagers.
Food processing plants: Large-scale production enterprises such as flour mills and feed mills to achieve efficient production and ensure product supply.
Advantages of our factory
Our factory has experienced engineers and technicians, advanced equipment and technology, and a strict quality control system. We use the most advanced machines and tools to manufacture our products, ensuring their precision and quality.
