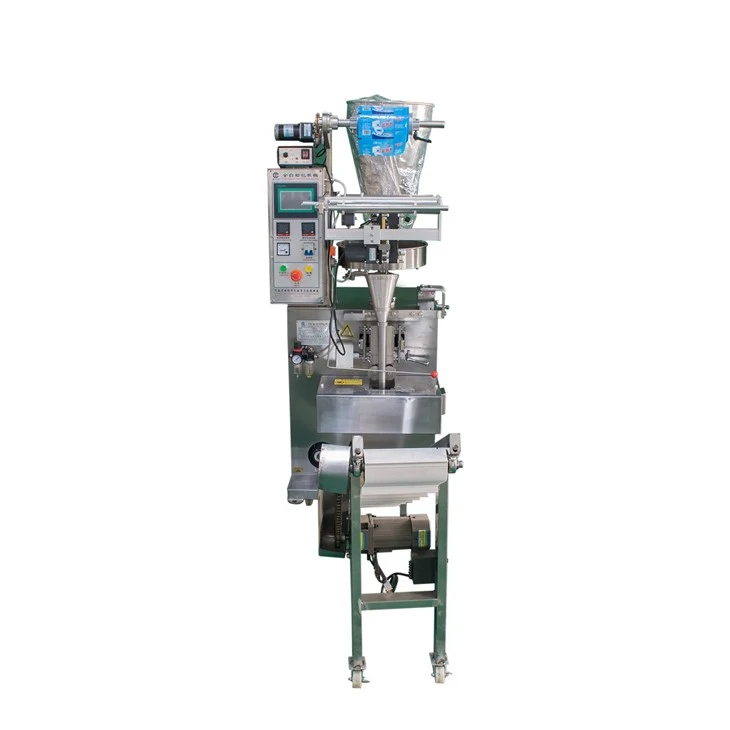

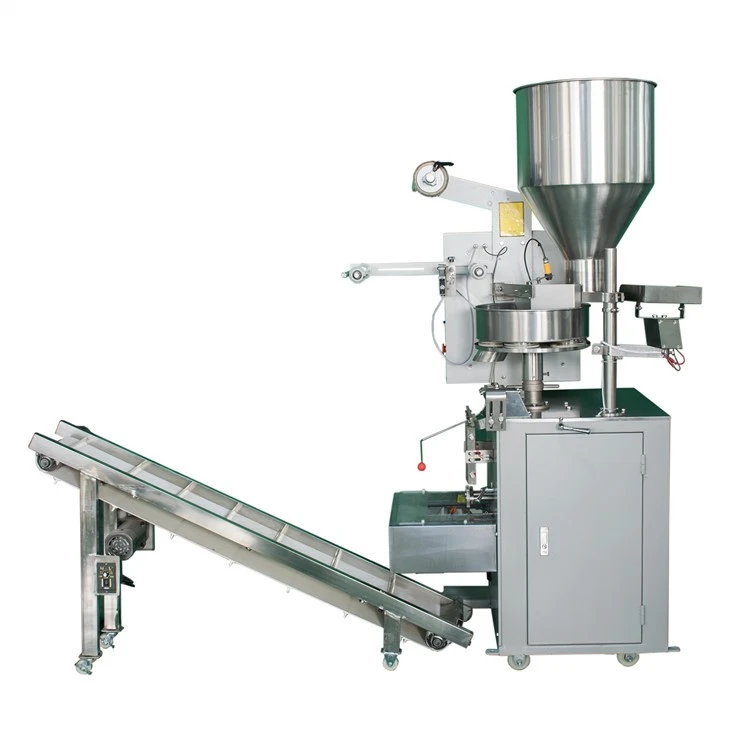

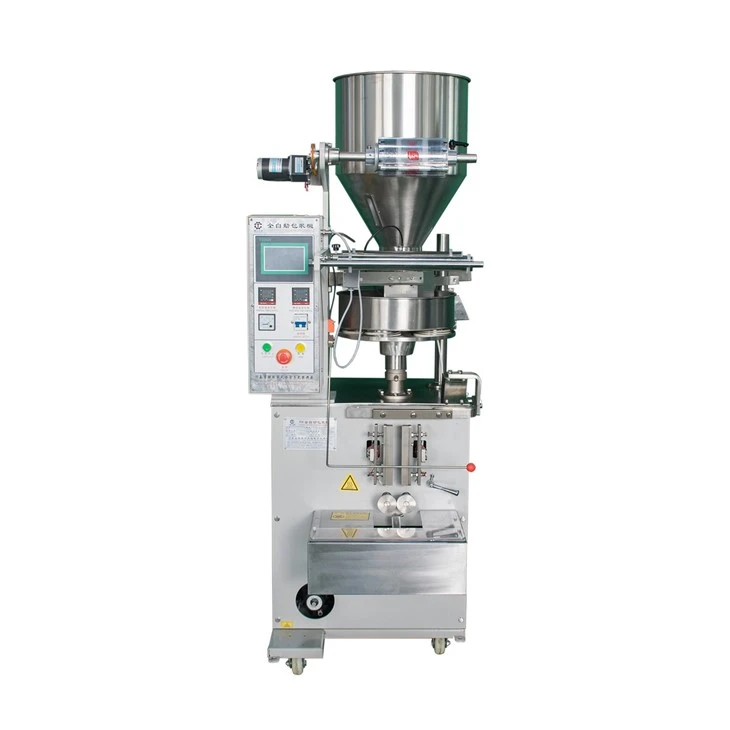

Introduction of Automatic Pouch Packing Machine
Packaging machines are widely used to package various products. They can realize automated production and improve production efficiency and packaging accuracy. With the development of food, medicine, chemical and other industries, the application fields of automatic packaging machines are becoming more and more extensive.
Structure of Automatic Pouch Packing Machine
Feeding system: includes hopper and conveying pipe. The hopper is used to store the products to be packaged, and its capacity depends on the production scale of the packaging machine. The conveying pipe is responsible for stably conveying the products from the hopper to the packaging bag.
Bag making system: It can make the roll-shaped packaging material into the shape of a self-supporting bag.
Measuring system: It is used to accurately control the packaging volume of the product. For different products, the metering method is different.
Sealing system: It is mainly responsible for sealing the self-supporting bag filled with products.
Labeling system (optional): Some stand-up bag packaging machines are also equipped with a labeling system for affixing product labels on the packaged self-supporting bags.
Control system: It is the brain of the entire packaging machine and is responsible for coordinating the work of various parts.
Product Information
|
Model |
THB4-320 |
THB4-420 |
|
Max film width |
320mm |
420mm |
|
Bag making Length |
30-150mm |
40-150mm |
|
Bag making Width |
25-145mm |
50-200mm |
|
Packing speed |
20-80bags/min |
20-80bags\min |
|
Weight |
250kg |
300kg |
|
Dimension |
750*1150*1950mm |
850*1250*1950mm |
|
Power |
220V 50/60Hz 2Kw |
2.5KW/220V 50HZ |
Working Principle of Automatic Pouch Packing Machine
First, the roll packaging material is fed into the bag-making system, which makes the packaging material into a self-supporting bag according to the preset bag size and shape, and the bottom and sides of the bag are sealed by heat sealing. Then, the product enters the prepared bag through the feeding system, and the metering system ensures that the amount of product entering the bag meets the requirements. Then, the sealing system seals the opening part of the bag to complete the packaging process. If there is a labeling system, the bag will be automatically labeled after packaging.
Automatic filling machine applications
1. Food and beverage industry: Automatic filling machines are widely used in the food and beverage industry for filling products such as sauces, jams, sauces, juices, etc.
2. Chemical industry: The chemical industry uses automatic filling machines to fill detergents, oils, paints and other products.
3. Pharmaceutical industry: The pharmaceutical industry uses automatic filling machines to fill syrups, creams, gels and other products.
4. Cosmetics industry: The cosmetics industry uses automatic filling machines to fill lotions, shampoos, conditioners and other products.
Our factory's advantages
Our factory's production equipment adopts advanced technology to improve the production efficiency and quality of products. Our factory has strict production process management to ensure that the quality of mechanical equipment is more stable and reliable. Our factory's professional technical team can design and manufacture suitable mechanical equipment according to different customer needs and provide more complete solutions.
