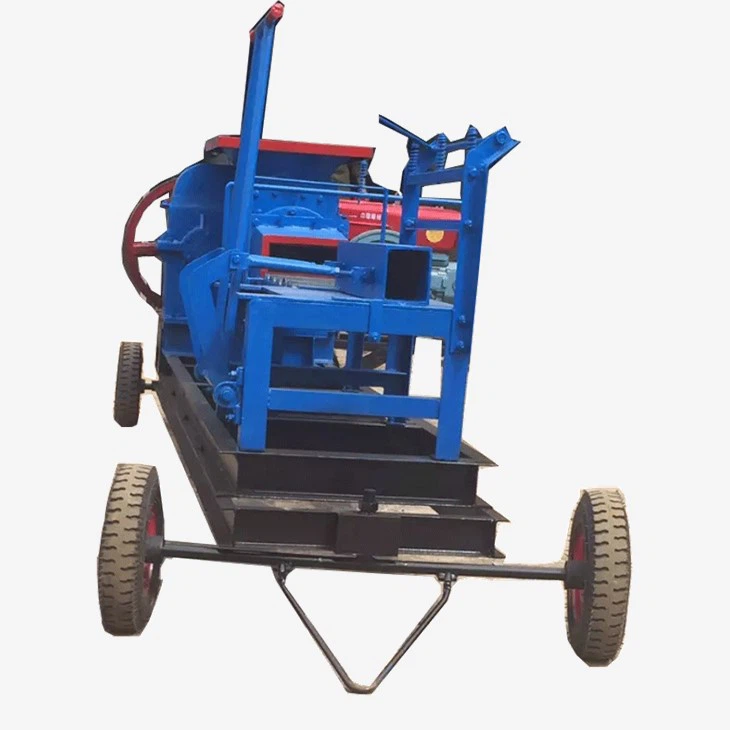

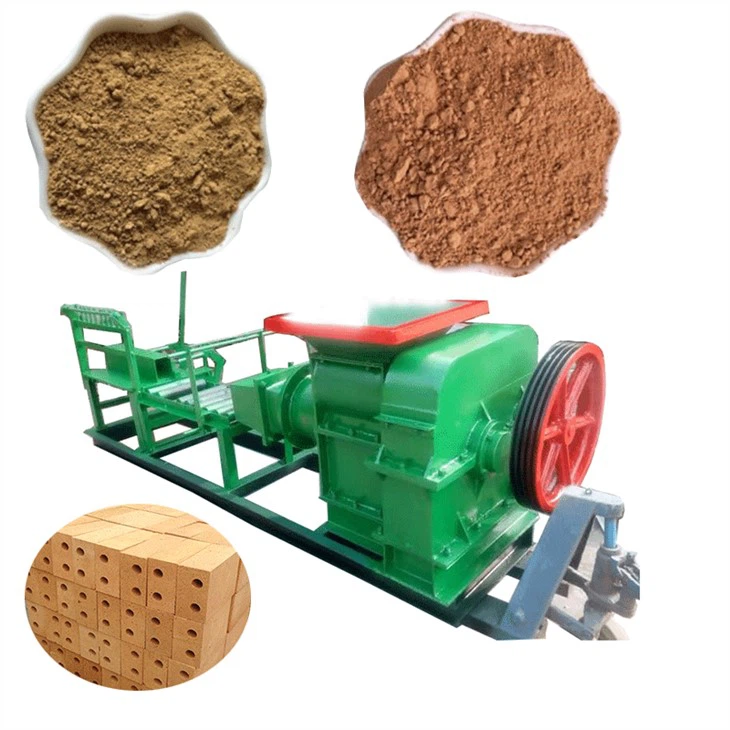

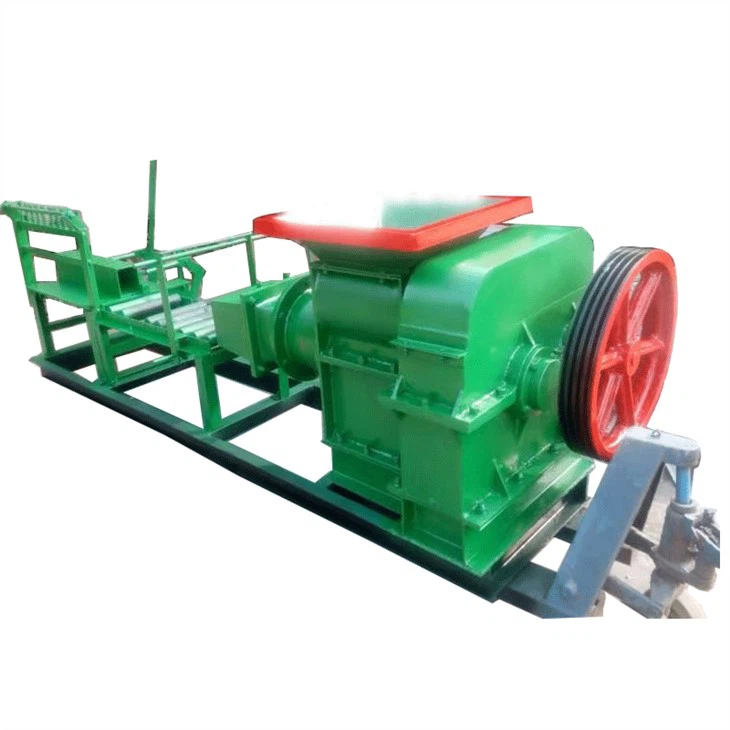

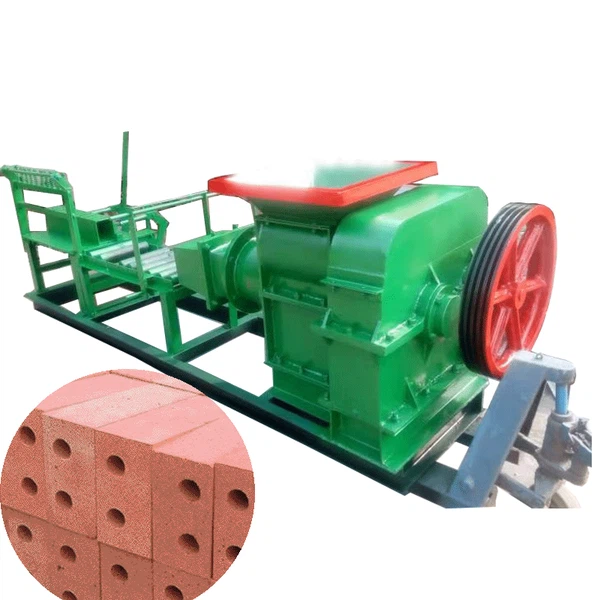

Introduction of Red Brick Making Machine

Brick making machines are mechanical equipment used to produce various types of bricks. They are rich in variety and can meet the needs of different construction scenes and projects. The bricks they produce are accurate in size and uniform in strength, making them the best choice for factories.

Advantages of Red Brick Making Machine

There are many advantages to using red bricks to make machines. One of the main benefits is that these machines are designed to produce bricks efficiently, which means they can produce more bricks in less time than traditional manual methods. This increases productivity and reduces labor costs. Another advantage is that the bricks produced by the red brick machine are of consistent and high quality. The final quality of the bricks depends on the raw materials used, but the machine ensures that each brick is the same size and shape. Finally, these machines are low maintenance, which means they require minimal repairs and can run for years without any issues.

specification

Roller mill

Model: 800

Production: 60–80 m3/h

Motor: 2 x 11kw,

Size: 2600 x 1100 x 1300mm

Weight: 1800kg

Conveyor:

Model: 8m

Size: 8000x1000x500 mm

Motor: 3.0kw

Weight: 600kg

Double shaft mixer (manual clutch):

Model: SJ 3m

Size 4800x1000x800mm

Motor: 45kw

Production: 60-80 CBM / hour

Weight: 2300kg

JZ400 Bipolar vacuum brick machine

Production:

7000 pieces / hour

(230mm * 115mm * 75mm)

6000 pieces / hour

(230mm * 120mm * 90mm)

5000 pieces / hour

(250mm * 150mm * 90mm )

Motor: 110kw,

weight: 7.1T

Size: 4800*1800*2000mm

Vacuum Pump

Size：1200x500x750mm

Motor：11kw

Weight：200kg

air compresser

Size：1000x600x500mm

Motor：2.2kw

Weight：100kg

Full Automatic strip cuter

Model: QT

Motor: 3kw

Size：2650×1400×1600mm

Weight: 1600kg

Full Automatic brick cuter

Model: QP

Speed: 1-1.5 m / sec

Motor:1.1KW

Weight: 400kg

Control cabinet (with step-down start function)

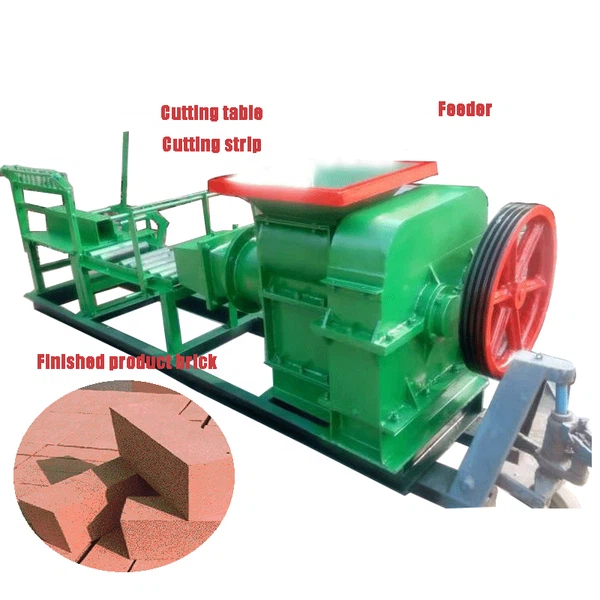

Working Principle of brick machine

First, screen and remove impurities from the mined clay raw materials, add water and stir to the appropriate humidity and hardness. The processed clay enters the extrusion chamber through the feed hopper, and the screw in the chamber rotates, pushing and squeezing the clay, so that it is extruded from the die head into continuous clay strips, and then cut into bricks by the cutting device.

Applications of Red Brick Making Machine

Red brick machines are used by various industries to make different types of bricks like clay bricks, fly ash bricks, interlocking bricks, etc. The most common application industries for these machines are construction, real estate, infrastructure, and public works. These machines are ideal for producing large quantities of bricks required for construction projects like houses, buildings, etc. Red brick machines are also used by small entrepreneurs who want to start their own brick making business.

Our factory's advantages

Our company has many years of experience in machinery manufacturing, attaches importance to customer needs, and provides products and services that satisfy customers. The company has a number of patents, providing customers with more, better quality, and more efficient product solutions.
