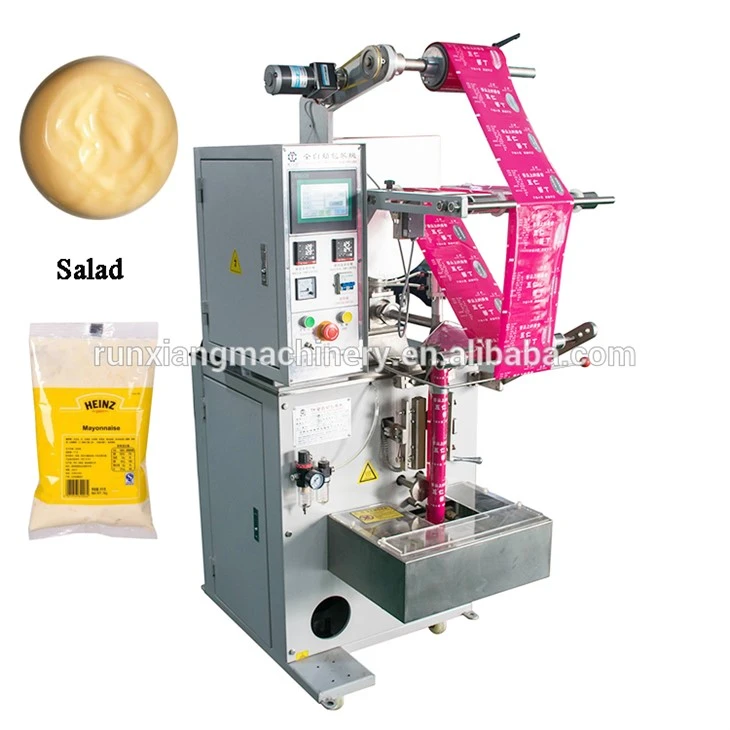

Working principle of ketchup packaging machine:
Ketchup packing machine is a unique packaging machine specially designed to pack ketchup into pouches of different sizes. The working principle of the ketchup packaging machine includes the following steps:
1. Raw material input: pour tomato sauce into the machine with a hopper.
2. Packaging material: The packaging material is placed on the machine, and the machine automatically forms a pouch.
3. Filling: Use the filling system to pump the ketchup into the bag.
4. Sealing: The bag is sealed by the machine using heat sealing or ultrasonic sealing.
5. Cutting: The machine cuts the pouch to the desired size.
6. Output: Finished ketchup pouches are collected and packaged for distribution.
Ketchup packing machine use:
Ketchup packaging machine is mainly used in the food industry, packaging ketchup into pouches of various specifications. It is commonly used in restaurants, fast food restaurants, and hotels.
Advantages of ketchup filling machine:
1. Save time: The ketchup packaging machine can fill and seal in a short time, which saves time than manual filling and sealing.
2. Cost-effective: This machine reduces the labor costs associated with manual filling and sealing.
3. Accurate portion: The ketchup filling machine can accurately fill the pouch to ensure that the portion size is consistent.
4. Wide range of uses: this machine can be used to package a variety of liquids, including tomato paste, ketchup and other sauces.
What are the parameters of the machine?
The ketchup packaging machine parameters include:
1. Filling capacity: the filling capacity of this machine ranges from 500-2000ml.
2. Pouch specifications: This machine can produce 50-500ml pouches of different specifications.
3. Sealing system: This machine can adopt heat sealing or ultrasonic sealing system.
4. Capacity: The machine can pack up to 30-35 bags per minute.
What is the difference between our company's machine and someone else's?
The difference between our company's ketchup packing machine and other machines is:
1. Quality: Our machines are made with high-quality materials and advanced technology to ensure durability and effectiveness.
2. Versatility: Our machines can be used to pack different types of liquids, while other machines may be limited to specific types of liquids.
3. Efficiency: Our machines can pack up to 30-35 bags per minute, ensuring faster and more efficient production compared to other machines.
4. Capacity: Our machine has high filling capacity, which is very suitable for large industry use.
In summary, the ketchup packaging machine is an essential packaging machine to ensure that ketchup is efficiently and accurately packed into small bags. The machine has many advantages over manual packaging, including cost-effectiveness, accuracy, and speed. Our company's machines are made with high-quality materials and advanced technology, which are durable and efficient.
|
Model |
THB4 –S320L(Pillow) |
THB4–S320L(3 side) |
THB4 –S320L(4 side) |
|
Film Width |
Max. 300 mm |
Max. 320 mm |
Max. 320 mm |
|
Bag Length |
60-200 mm |
60-200 mm |
60-200 mm |
|
Bag Width |
40-140 mm |
40-160 mm |
40-160 mm |
|
Packaging Speed |
15-40 bags/minute |
15-40 bags/minute |
15-40 bags/minute |
|
Range of Metering |
10-500 ml |
10-400 ml |
10-400 ml |
|
Film Thickness |
0.04-0.12 mm |
0.04-0.12 mm |
0.04-0.12 mm |
|
Power |
220V 50Hz 2KW |
220V 50Hz 2KW |
220V 50Hz 2KW |
|
Dimension |
1100×800×1750mm |
1100×800×1750mm |
1100×800×1750mm |
|
Net Weight |
About 300 KG |
About 300 KG |
About 300 KG |
