Charcoal Dryer Machine

Since the charcoal drying machine, also called charcoal dryer, is not affected by the external environment, weather, season, and climate, the briquette dryer can work continuously for 24 hours, and can well guarantee the quality, color, appearance, and active ingredients of the dried products, and can meet the needs of different products. Therefore, a dryer machine can be used for drying operations in the fields of aquatic products, meat products, medicinal materials, agricultural and sideline products, fruits and vegetables, food, grains, seeds, clothing, tea, paper, wood, industry, and other fields.

Since the charcoal drying machine, also called a charcoal dryer, is not affected by the external environment, weather, season, and climate, the briquette dryer can work continuously for 24 hours, and can guarantee the quality, color, appearance, and active ingredients of the dried products, and can meet the needs of different products. Therefore, a dryer machine can be used for drying operations in the fields of aquatic products, meat products, medicinal materials, agricultural and sideline products, fruits and vegetables, food, grains, seeds, clothing, tea, paper, wood, industry, and other fields.

1. High efficiency and a short time: Because hot air heating is equivalent to natural light heating, it does not destroy nutrients and does not damage the internal structure, so that the material can be uniformly dried in a short time, effectively shortening the drying time.

2. Energy saving: Hot air acts directly on the material, so there is no additional heat loss, resulting in high thermal efficiency, and the environment is significantly improved.

3. Uniform heating: Because the low-temperature hot air circulation forms a uniform air duct in the box, it can be heated and dried evenly. The fully automatic moisture exhaust system automatically turns on the moisture exhaust fan after detecting that the humidity reaches the value that needs to be turned on.

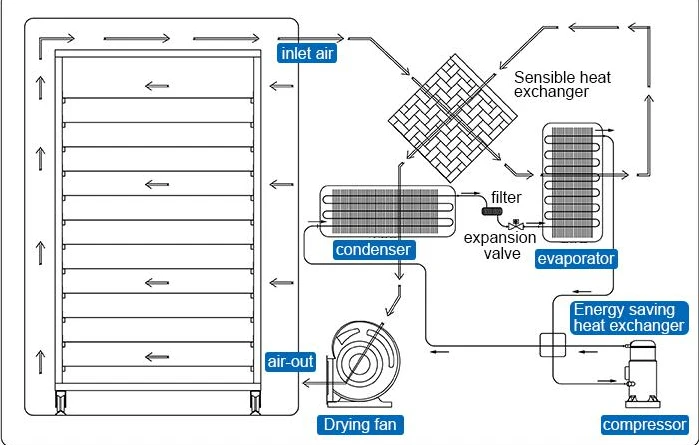

The high-temperature briquette dryer is mainly composed of four parts: a finned evaporator (outer unit), a compressor, a finned condenser (inner unit), and an expansion valve. →compression→condensation (releasing heat in the indoor drying room)→throttling→re-evaporation thermodynamic cycle process, so as to transfer the heat in the external low-temperature environment to the drying room, and the refrigerant is in the system under the action of the compressor. Internal circulation flow. It completes the gaseous boosting and heating process in the compressor (the temperature is as high as 100 ℃), it enters the inner unit and releases high-temperature heat to heat the air in the drying room, and at the same time, it is cooled and converted into a liquid state. When it runs to the outer unit after that, the liquid quickly absorbs heat and evaporates, and turns into a gas again, and the temperature can drop to -20℃～-30℃. At this time, the air around the heat absorber will continuously transfer heat to the refrigerant(briquette dryer).

1. Heat pump unit. 2. Drying room 3. Hot air circulation components. 4. Intelligent control components, etc.
