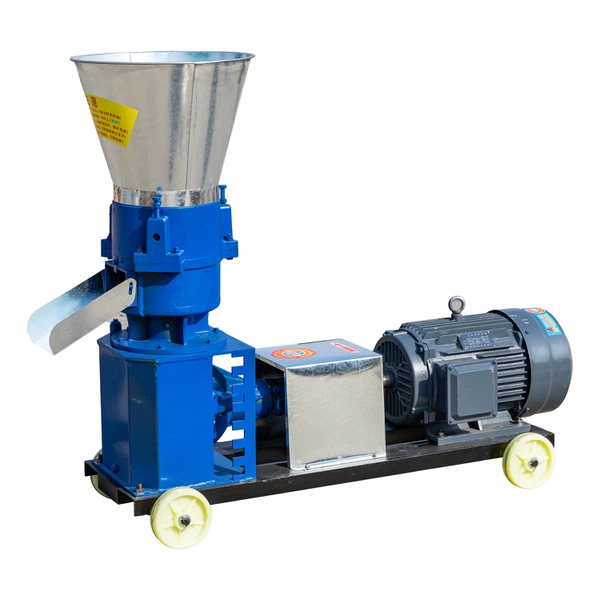

Introduction of Animal Feed Pellet Making Machine
A feed flat die pellet machine is a mechanical equipment used to process powdered feed raw materials into pelleted feed. This machine reduces the production cost of feed pellets and can effectively improve the nutritional content of feed. It is an ideal choice for manufacturers such as breeding factories.
Structure of feed machine
Flat die: This is the core component of the feed flat die pellet machine, usually a disc-shaped die. There are many evenly arranged die holes on the flat die, and the size and shape of the die holes determine the size and shape of the pellets.
Pressing roller: There are usually 2-3 pressing rollers working with the flat die. The pressing roller is usually cylindrical, with a smooth surface or with a certain pattern to increase the friction on the raw materials.
Power device: Usually a motor is used as the power source, and the power of the motor depends on the production capacity of the pellet machine.
Feeding device: It includes a feed hopper and a screw feeder. The feed hopper is used to store the powdered feed raw materials to be processed. The screw feeder is located below the feed hopper, and its function is to transport the raw materials to the working area.
Discharging device: It is mainly a discharge port and a cutter. When the raw materials are squeezed by the pressing roller through the die holes of the flat die, continuous strip-shaped feed is formed, and the discharge port is used to discharge these formed feed strips.
Information of Animal Feed Pellet Making Machine
|
Model |
Power puissance |
Capacity(feed)(kg/h) |
Capacity(fuel)(kg/h) |
Weight(kg) |
Size(mm) |
|
WSKL-125 |
2.2kw-3kw |
75-100 |
40-60 |
75kg |
650*300*600mm |
|
WSKL-150 |
3kw |
90-120 |
70-80 |
95kg |
750*400*820mm |
|
WSKL-200 |
7.5kw |
200-300 |
100-150 |
110kg |
900*400*750mm |
|
WSKL-230 |
11kw |
300-400 |
200-300 |
150kg |
1180*580*880mm |
|
WSKL-260 |
15kw |
400-600 |
300-400 |
135kg |
1200*500*1070mm |
|
WSKL-300 |
22kw |
600-800 |
500-600 |
220kg |
1250*520*1070mm |
|
WSKL-360 |
22kw |
800-900 |
700-800 |
350kg |
1270*520*1070mm |
|
WSKL-400 |
30kw |
1000-1200 |
800-1000 |
600kg |
1470*500*1150mm |
Working Principle of Feed Pellet Machine
The first step in making feed pellets is to screen the raw materials to remove impurities so that the quality of the feed pellets will be high. Farmers need to weigh and measure the raw materials to the required quantity corresponding to the nutritional needs of the chickens. The raw materials are mixed using a mixer to ensure that the ingredients are mixed evenly to form a mixture with the correct nutritional value. The next step is to feed the mixed pellets into a pelletizer, which compresses them into small pellets. After pelletizing, a cooler is used to cool the pellets so that they are dry and ready for storage.
Application of Animal Feed Pellet Making Machine
Small farms: can process pellet feed by themselves to meet the needs of their own animals, and can flexibly adjust feed formula and particle size according to the type and growth stage of the animals.
Small feed processing workshops: can use feed flat die pellet machine to produce special feed or customized feed to meet the needs of specific customers.
Experimental research institutions: in feed research units or animal nutrition research institutions, feed flat die pellet machine can be used for small batch feed formula experiments and pellet forming process research, which is convenient for researchers to quickly make pellet feeds of various formulas and shapes for animal feeding experiments.
Advantages of our factory
Our factory has fully automated production lines, lean management system, advanced equipment, and strong technical strength, which can guarantee product quality and production efficiency. In addition, we provide customized services, which can be customized according to customer needs.
