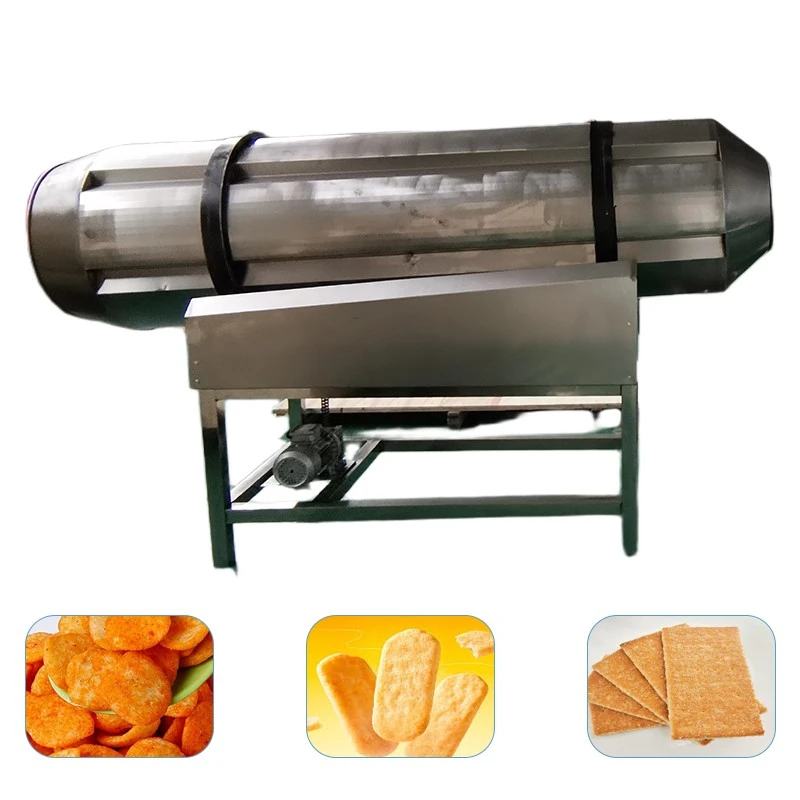

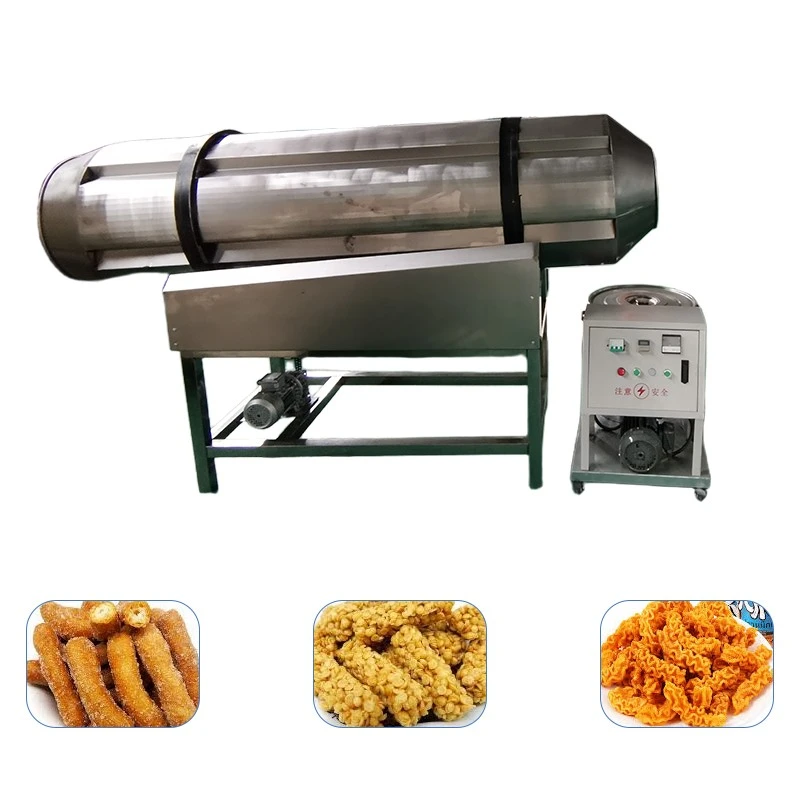

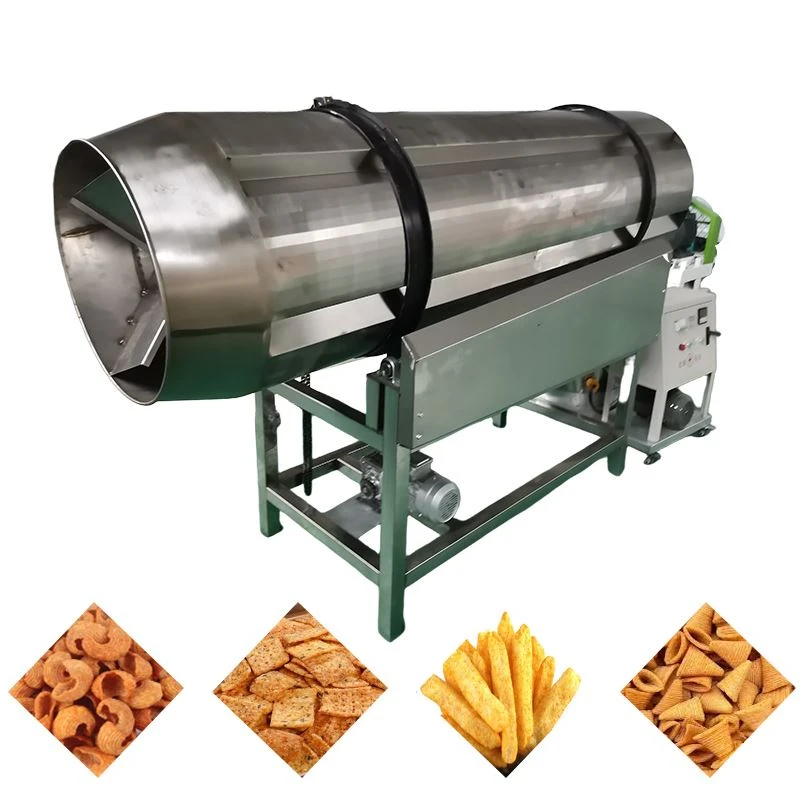

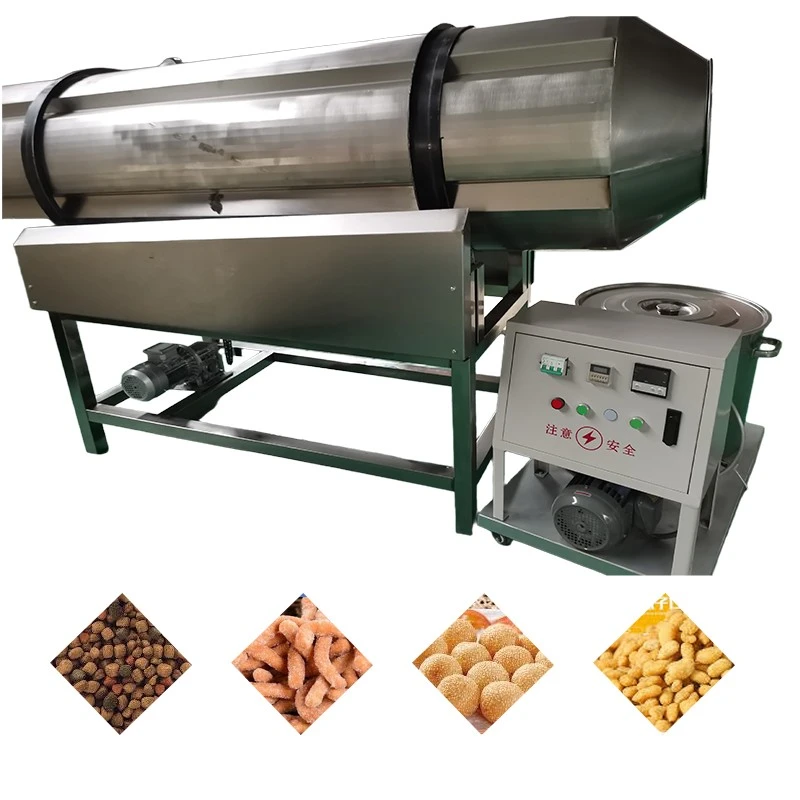

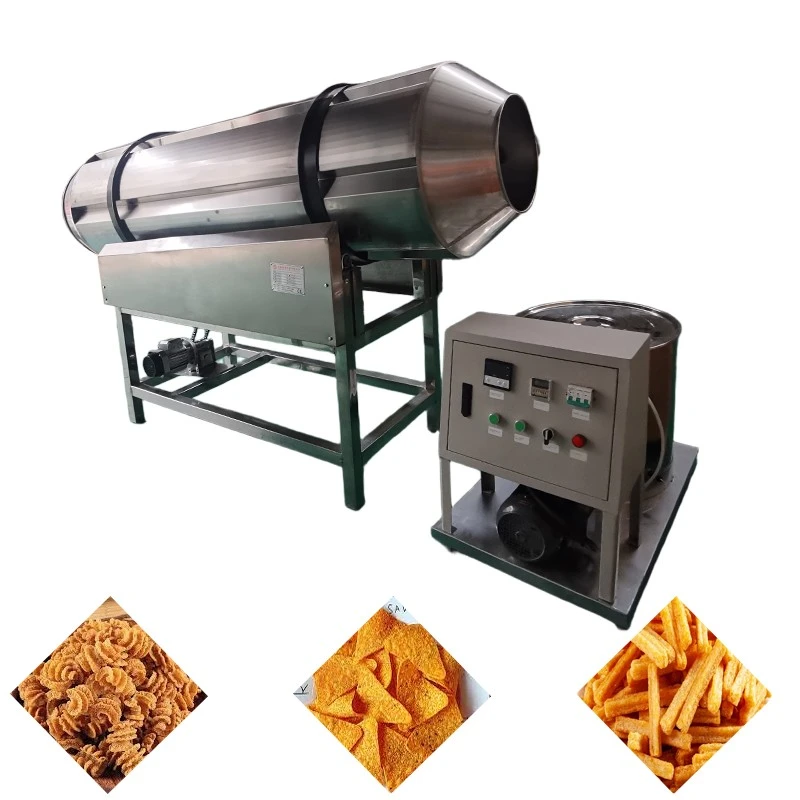

Potato Chip Seasoning Machine

The drum-type seasoning machine is a key piece of equipment designed specifically for the downstream processing of crispy snacks such as potato chips and puffed foods. This equipment is a specialized mechanical device that uses a rotating drum to achieve uniform seasoning, enabling precise seasoning with a high coverage rate (>98%) and a low breakage rate (<0.5%).

 As a key piece of equipment in the production of puffed food to achieve standardized, large-scale, and high-quality flavor, the spice mixing equipment's core significance lies in:

Ensuring uniform and consistent seasoning

Achieving continuous and large-scale production

Customizable for seamless integration with frying, degreasing, and packaging lines, significantly increasing production capacity and meeting the needs of large-scale industrial production.

Reducing breakage rate and maintaining product integrity

Precisely controlling seasoning dosage, saving costs

Stainless steel drum design, hygienic and safe, easy to clean, with no dead corners, meeting food production standards

Quickly switching flavors, enhancing product diversity

Item	Model 300 Specs	Model 650 Specs
Model	TY-300	650
Main Motor Power	0.55 kW	0.37 kW
Oil Pump Power	0.37 kW	0.37 kW
Sprinkler Power	-	0.09 kW
Output/Capacity	100-200 kg/h	200-300 kg/h
Overall Dimensions	2450*650*1450 mm	5200*750*1600 mm
Weight	190 kg	320 kg
Material	Stainless Steel	Stainless Steel
Voltage	220V/380V	220V/380V

Our company specializes in potato chip and puffed food processing equipment, focusing on the high efficiency and standardization needs of the seasoning process. We primarily produce two types of drum-type seasoning machines-single-drum and double-drum seasoning machines. To learn more about our machines, click the button below to get a quote.

Contact now

High Uniformity: Controllable rotation and guide vane tumbling achieve 360° full coverage of seasonings, with a coverage rate >98%, resulting in excellent flavor consistency.

Unique Design: The flexible rolling roller design replaces conveyor belt scraping, keeping the chip breakage rate within 0.3%–0.5%.

Multi-Seasoning Type Compatibility: By changing parameters, it can support various seasoning media such as dry powders (salt, spices), granules (dehydrated onion granules), sauces (atomized tomato paste), and oils (pre-coated palm oil).

Contact now

Intelligent and Precise Control: The PLC system adjusts the rotation speed (typically 6–20 rpm), tilt angle (2°–8°), and residence time (5–15 s), and links it with metering and atomization pressure.

All 304 stainless steel structure, no dead corners, hygienic and energy-saving design.

Highly Customizable and Integrated Production Line: It can be used independently or seamlessly connected to the front-end extruder elevator and the back-end packaging line, supporting fully automated continuous production.

The potato chips are continuously tumbled forward by a tilting rotating drum, while seasonings are quantitatively and evenly sprinkled in by a powdering system. Under automated control, the materials and seasonings are dynamically mixed and evenly coated.

The main structure of a drum seasoning machine consists of four parts: a power transmission system (motor and reducer), an inclined rotating drum body, a seasoning system for quantitative powder or liquid spraying, and a frame that supports the whole machine.

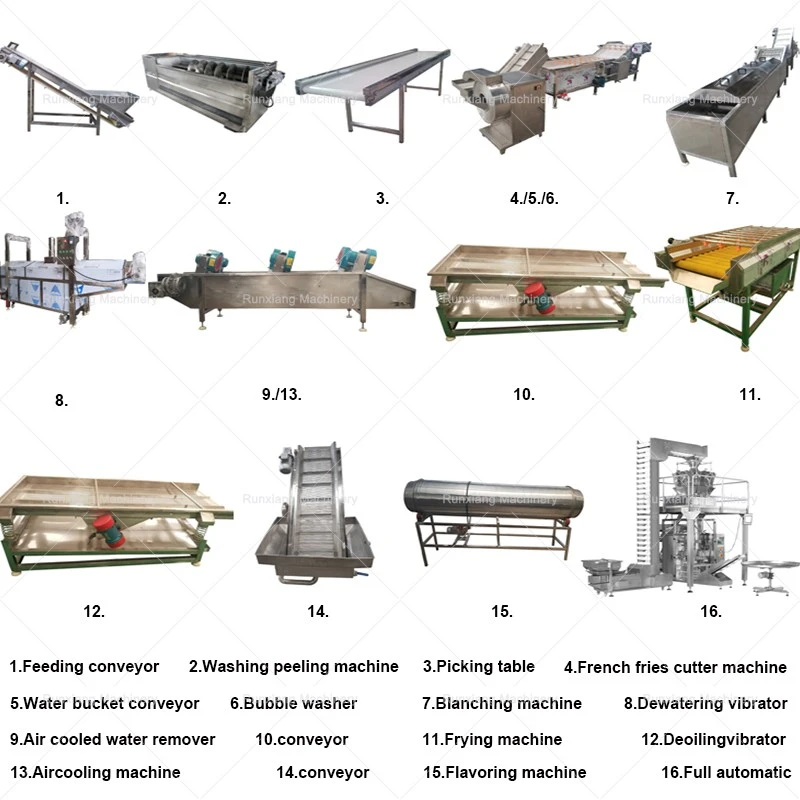

 The drum seasoning machine can operate independently or as a core downstream hub in automated potato chip/puffed food production lines. Its working principle allows for close integration with upstream processing and downstream packaging machinery to achieve fully unmanned and standardized production.

Both the star anise seasoning machine and the drum seasoning machine mentioned above are available for immediate sale. Send an inquiry now to get a quote.

The single-cylinder seasoning machine uses export-grade packaging: pearl cotton + waterproof membrane for moisture and scratch protection, custom plywood wooden crate, secured with steel straps, suitable for sea and land transportation, ensuring safe and undamaged long-distance transport.

 One-on-one Q&A
Reliable equipment quality
Mature and practical technology
Higher cost-effectiveness
Comprehensive after-sales service
Customization support available
We can make personalized adjustments based on customer capacity, workshop layout, and supporting equipment to better meet actual production needs.
Choosing our drum seasoning machine means producing products with more consistent quality and better appearance at a lower cost.
