Industrial Garlic Peeling Machine

 This production line starts by feeding whole garlic cloves, automatically completing the conveying, clove separation, peeling, and peel-garlic separation processes, ultimately outputting clean, intact peeled garlic cloves without outer skin or damage.

NO	Name	Picture	Parameter	Qty(pc)	Can it be used alone?
1	Garlic Elevator		Power: 0.75kw/380v Dimensions: 1800*950*1300mm Stainless steel and PVC conveyor belt	1	yes

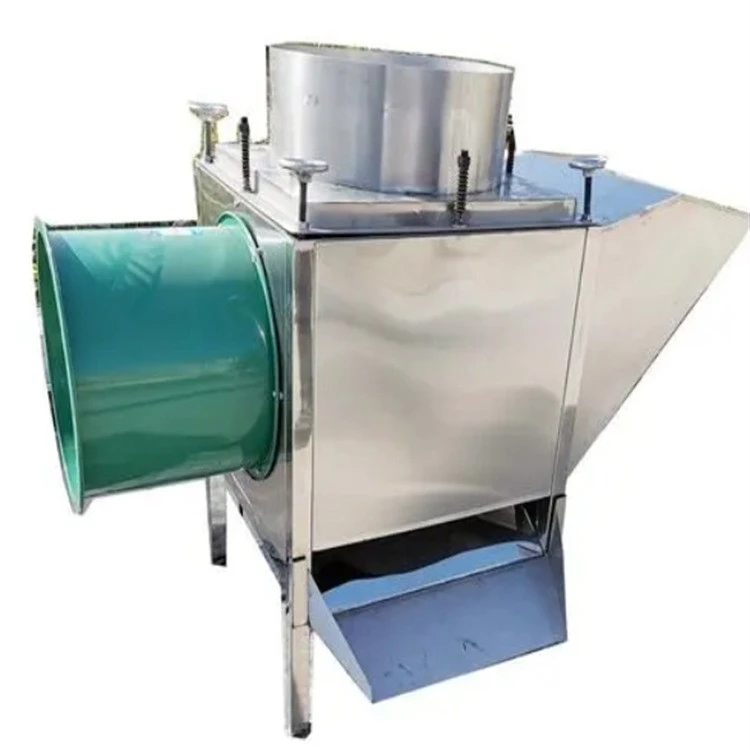

2	Garlic clove separator		Model: RX-600 Power: 1.12KW/220V Weight: 120(KG) Dimensions: 740x720x1140(MM) Production: 600(KG/H) Material: Stainless steel	1	yes
3	Garlic Elevator		Power: 0.75kw/380v Dimensions: 1800*950*1300mm Stainless steel and PVC conveyor belt	1	yes

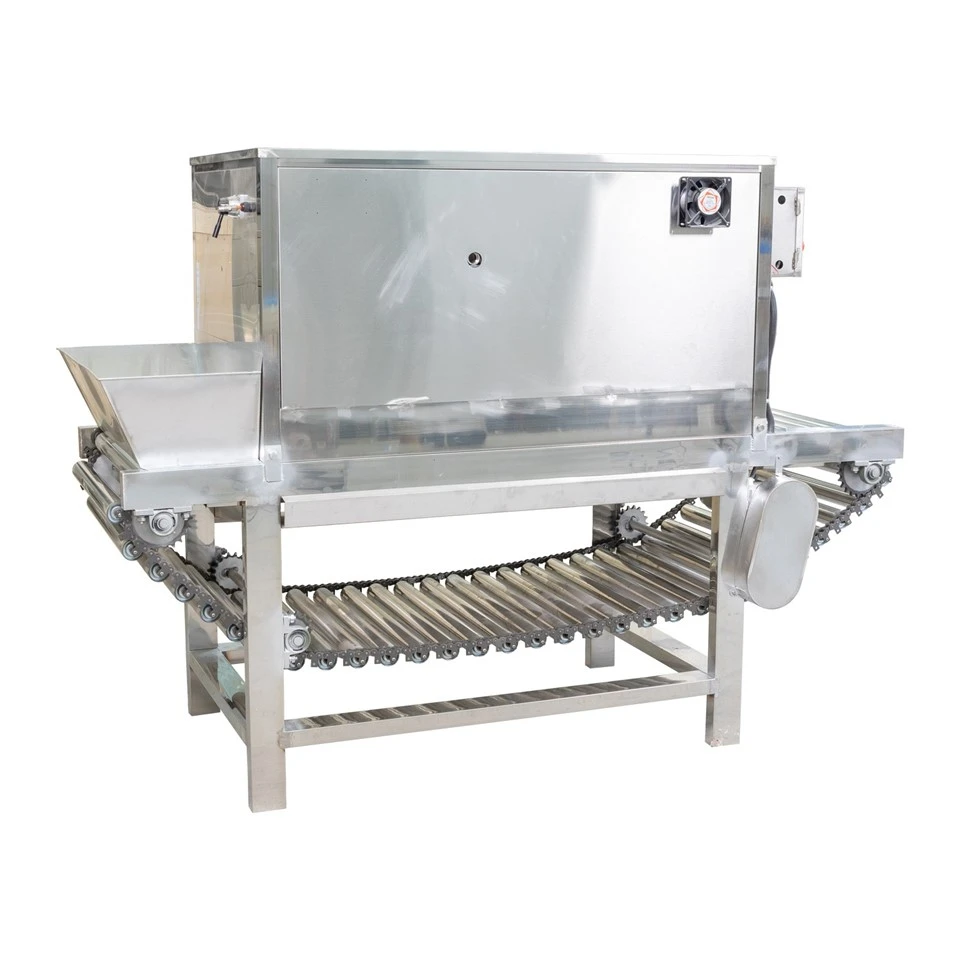

4	Garlic peeling machine		Model: RX-600 Power: 1KW/220V Weight: 280(KG) Dimensions:1800x580x1520(MM) Production: 500-600(KG/H) Material: Stainless steel	1	yes
5	Air compressor		Power: 37KW/380V Exhaust volume: 5.6m³/min Pressure: 1mpa Screw machine size: 130*96*123Cm Weight: 500kg Gas tank size: 225*75*85cm Weight: 160kg	1	yes

Our industrial garlic peeling machine production line perfectly addresses the pursuit of efficiency, cost, stability, and hygiene standards in large-scale, continuous production.

1. This production line is suitable for industrial use, achieving a peeling rate of ≥99.2% and a breakage rate of <0.8%.

2. Requires no manual intervention and is fully automated.

3. Designed for long-term, uninterrupted large-scale production and long-term use.

4. Employs pneumatic dry peeling technology and stainless steel construction to ensure food safety and quality.

5. This production line can be used independently or flexibly combined and customised according to the finished product.

Machine Use Cases: Suitable for large-scale use in food factories, central kitchens, wholesale farmers' markets, and garlic deep processing.

Finished Product Use Cases: It is used to make hot pot base, sauce, stew seasoning and compound seasoning.

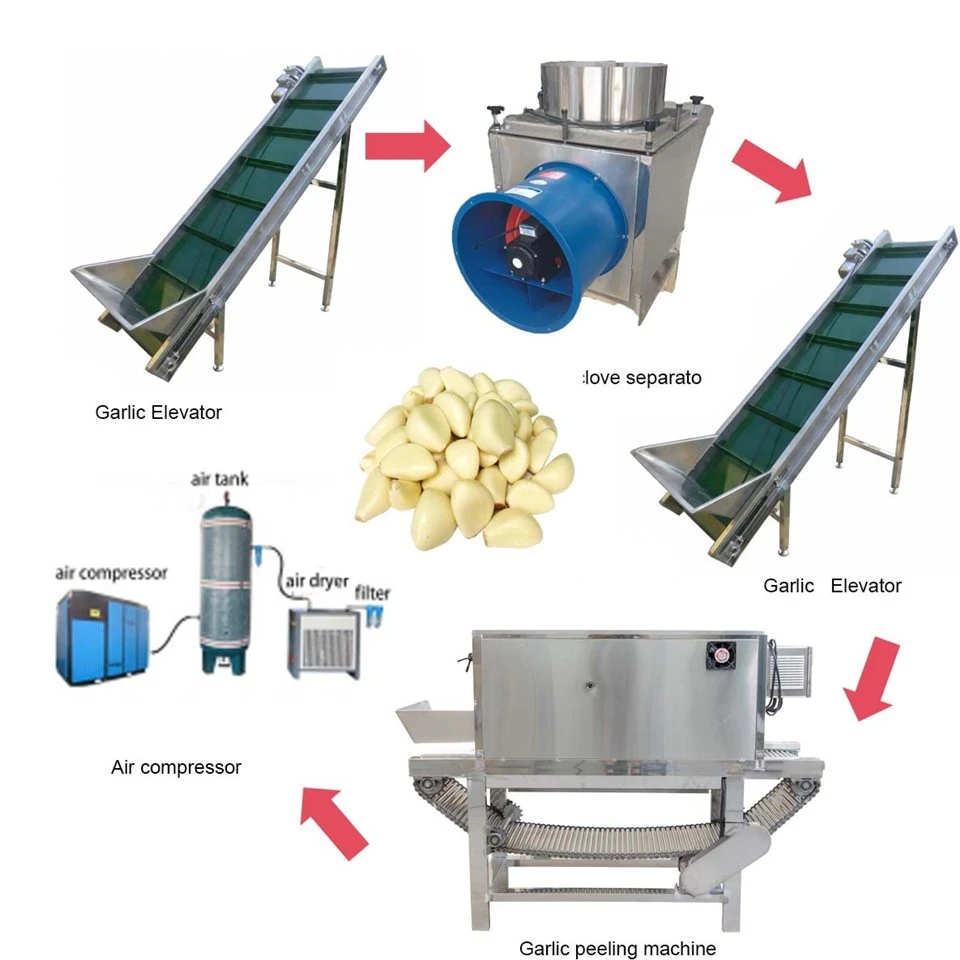

The production line consists of four seamlessly connected machine modules, achieving automated flow from raw material input to finished garlic cloves output. Individual machines can be used independently.

Both the clove separating machine and the peeling machine utilise a dry pneumatic principle, employing high-pressure air vortexes to naturally peel the garlic cloves through friction. The peeling rate is over 98%, with minimal damage to the cloves (damage rate can be controlled within 3%-5%), ensuring the integrity and commercial value of the garlic cloves.

Both the garlic peeling and clove separating machines on this production line are made of stainless steel. Because of the dry processing, bacterial growth is avoided, and the peeled garlic cloves have a dry surface, making them more stable for storage.

 This machine is professionally packaged with three layers of protection: thickened pearl cotton cushioning and a custom-made solid wood crate for reinforcement. This ensures it is drop-proof, impact-proof, moisture-proof, and dust-proof, guaranteeing the equipment arrives at the customer's hands intact during long-distance transportation.

What are the benefits of choosing Lerford?

Lerford has many years of experience in industrial machinery. By choosing our garlic processing series, you will receive:

Fully automated production lines
Formal warranty service
Recommended mature solutions based on production volume and requirements
Customization available
Global shipping and guidance

For industrial use, an industrial garlic peeling machine production line is more than just a "peeling tool"; it's a comprehensive solution integrating high-efficiency production, cost control, quality assurance, and flexible scalability. It helps food processing companies consistently obtain large quantities of high-quality garlic cloves at lower unit costs, thereby establishing a core competitive advantage in the market.
