Application of walnut machine:
1. This walnut nut cracker machine also called the black walnut processing machine is used to crush the hard shell of the macadamia nut and walnut. It is suitable for all different sizes of walnuts. But when the size of macadamia nut/walnut differs greatly, it is better to grade first.
2. The walnut shelling machine is composed of two parts which are shown in the picture.
3. The walnut cracker machine has its own special transmission system and beating system to make sure the macadamia nut/walnut will be broken to remove the shell easily.
Flow chat of walnut processing machine line:
1. Green walnut washing and peeling machine--2.walnut grading machine--3.walnut cracking machine--4.shell nut separator machine--5.packing machine
Technical information:
1. Three-level walnut shelling machine Model: HAS-2000 Product use: for grading different nuts Production capacity: 800-1000kg/h Power: 6.5 kW) Voltage: 380 V,50hz weight: 1300 kg
|
2.Kernel and Shell separator Model:HAV-800 Power: 3Kw frequency: 50kz Voltage: 380V Size: 2.5*0.8*1.6M Specific gravity separation Separation rate 90--95% weight: 280 (kg) capacity: 500-600kg/h
|

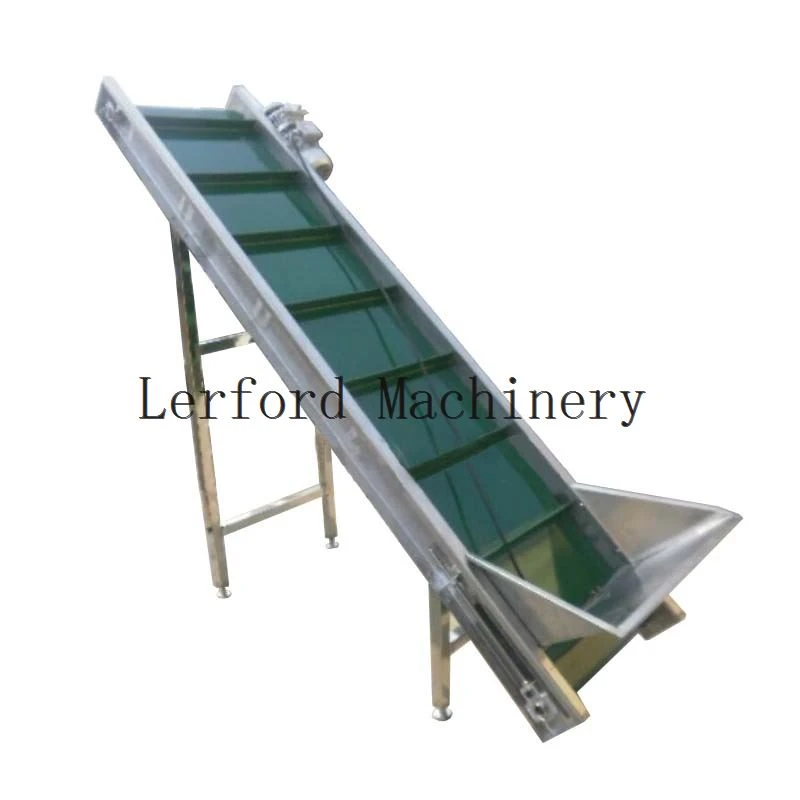

3. Elevator Machine Power:0.75kw Size:0.5*0.3*3.5m Material: stainless steel, carbon steel for transmission parts
|
Working Principle ofwalnut machine:
This Nut Kernel Shell Cracker Machine is divided into one-level hoisting machine, one, two, and three-level processing. Adjusting the clearance between processing compression roller of one two three so as two processes the ability to process three different types of almonds at the same time. With the introduction of chain driving and vibration out charging, this machine has a compact structure and perfect design, low crashing ratio, and is the best almond processing equipment.
This Palm Kernel Cracking And Separator Machine include an elevator, decorticating machine for almond and apricot pit, and almond separation distance between the rollers of this machine, can break the different size shell of the products .because the size of the shell is different, so it is better to break the big size, then broken the smaller size.
Advantages of almond, hazelnut, palm nut, macadamia nut sheller machine, walnut shell removal machine:
1)The third-level shell can break three different kinds of almonds at a time. The first layer is broken, the first layer is not broken, and the second layer and the third layer can be broken so that the shell rate is relatively high.
2) this walnut processing machine has weight is light, the volume is small, is easy for transportation, and the operation is simple
3) This walnut processing machine is mainly suitable for peanut kernels and shelling nuts.
4) The removal rate of the walnut machine is higher than 99%, and the damage rate of the walnut shell is less than 0.5%. Suitable for large processing enterprises or walnut processing business operators.
5) Very good quality, the walnut machine is suitable to various sizes of walnut, palm or Almond.
