The Lerford corn mill can transform whole corn kernels into corn flour or coarse grits in a single pass and is also suitable for producing animal feed. Affordably priced and functionally capable, it is an ideal choice for home workshops, small food processing plants, livestock farms, and grain processing facilities. It serves as a fundamental, entry-level piece of equipment for deep corn processing.
01
No Site Restrictions

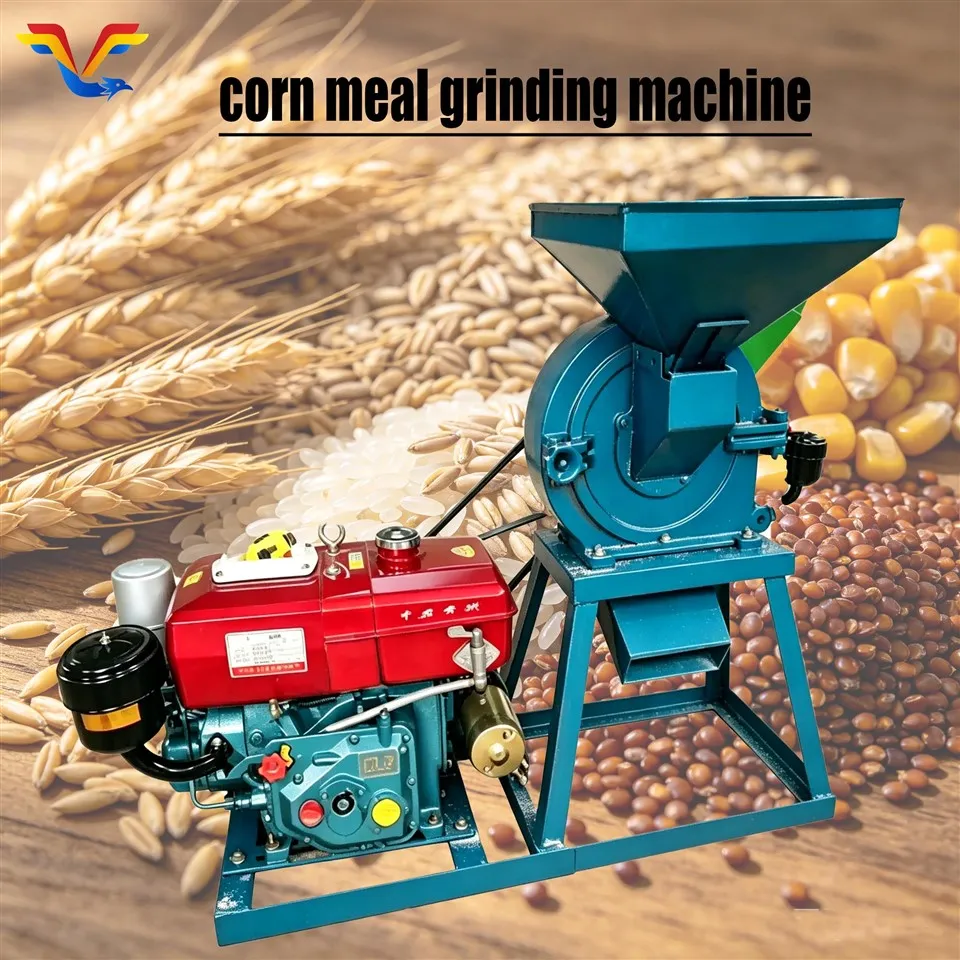

The biggest advantage of this diesel-powered corn grinder is that it doesn't require an electrical connection. You can use it anywhere-with or without mains power-making it ideal for remote areas that lack three-phase electricity.
02
All-in-One Design: Ready to Use
The machine ships fully assembled, so there's no need for you to put it together yourself. Just add diesel, start it up, and get to work-it's incredibly convenient.
03
Grinds More Than Just Corn
It handles not only corn but also other grains and coarse feed materials. Whether you are involved in livestock farming, food processing, or a small home-based side business, this versatile machine gets the job done.
04
High Efficiency for Daily Needs
Don't let its compact size fool you; it grinds quickly and delivers consistent results. Its daily output is more than sufficient for personal use or small-batch processing.
Parameter Specifications
|
Model |
Power |
Output (kg/h)
|
Weight (kg)
|
Number of 20-foot containers
|
|
|
Motor (kw) |
Diesel Engine (HP) |
||||
|
GMEC-160 |
1.5kw /220v,50hz |
4HP |
50-200 kg/h |
40 kg |
210 sets |
|
GMEC-200 |
2.2kw /220v,50hz |
5HP |
150-360 kg/h |
60 kg |
180 sets |
|
GMEC-280 |
3kw /220v,50hz |
6hp |
250-500kg\h |
80kg |
160 sets |
|
GMEC-300 |
4kw /380v,50hz |
8HP |
350-800 kg/h |
188 kg |
90sets |
|
GMEC-320 |
7.5kw /380v,50hz |
12HP |
450-1200kg\h |
210kg |
42 sets |
|
GMEC-360 |
11kw /380v,50hz |
15HP |
400-1800 kg/h |
280 kg |
24 sets |
|
GMEC-500 |
22kw /380V,50hz |
30HP |
1000-3000 kg/h |
720 kg |
6 sets |
|
GMEC-600 |
30kw /380v,50hz |
/ |
1100-3200 kg/h |
800 kg |
6 sets |
|
GMEC-800 |
55kw /380v,50hz |
/ |
2000-8000 kg/h |
1200 kg |
5 sets |

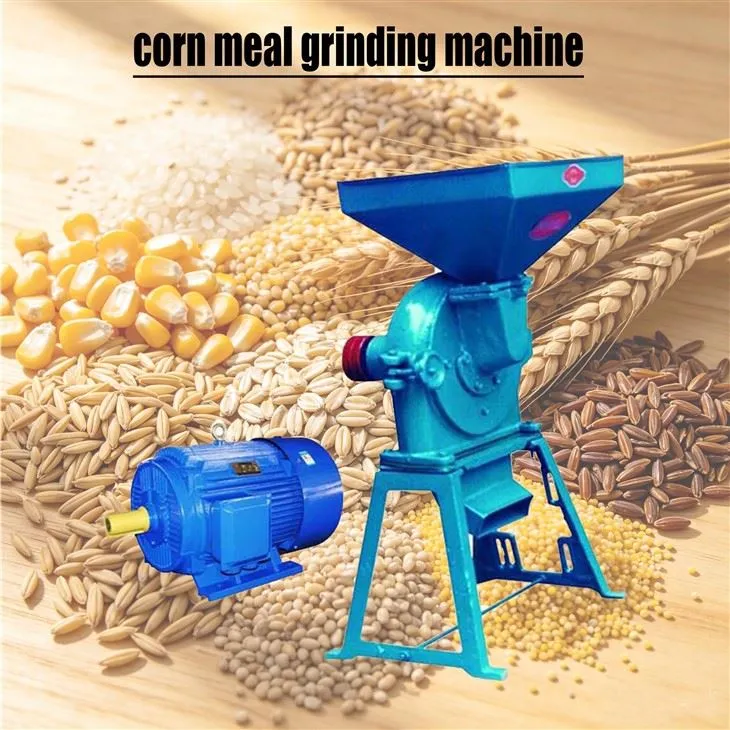

Selection of the Power Source
Lerford offers two power source options for this equipment: a diesel engine and an electric motor. You can choose the one that best suits your needs; if you provide basic information-such as the intended application and operating location-we can also offer tailored recommendations. Click the button below to contact us.
What are the raw materials used?
The tooth-claw pulverizer is a highly versatile machine designed for grinding dry, brittle materials. It handles a wide range of raw materials-including grains, animal feed, foodstuffs, and traditional Chinese medicinal herbs-with corn serving as its primary and most representative application.
In addition to corn, other suitable materials include wheat, rice, sorghum, barley, oats, and millet; soybeans, black beans, mung beans, red beans, and peanuts; as well as dried chili peppers, Sichuan peppercorns, star anise, cinnamon, and cumin.
The processed material features uniform fineness, free from any mixture of coarse and fine particles. Particle size is precisely controlled throughout the process via a screen, eliminating issues such as over-pulverization or residual coarse fragments. Whether processing corn flour, feed, or mixed grain flour, consistent particle size is maintained across batches, effectively ensuring product quality and optimal performance in subsequent applications.
In what settings is this machine typically used?
- Food processing: Production of corn flour, wheat flour, and spice powders
- Animal feed production: Grinding grains and shells into feed materials for poultry and livestock
- Agricultural farms: Small-scale grain processing on family farms and in rural areas
- Home use: Compact, easy-to-operate, portable corn mills for personal use
- Spices: Fine grinding of various spices
How does it work?
First, you feed dry corn or other grains into the hopper. Once the machine kicks on, the diesel or electric motor gets the toothed claws spinning fast inside, crushing the grain by hitting and rubbing it. The fine powder falls through the screen and comes out the bottom. Anything still too coarse stays in the chamber and keeps getting ground until it's fine enough, then it gets pushed out on its own. It all runs without stopping.
Custom Notebook Solutions
Lorem ipsum dolor, sit amet consectetur adipisicing elit. Repellendus aperiam, quam praesentium dolorum tempore unde architecto eum iure eos eveniet numquam eius assumenda eaque ea ducimus expedita explicabo cumque magni.
Lorem ipsum dolor sit amet consectetur, adipisicing elit. Quisquam architecto temporibus, dignissimos sit quam, obcaecati blanditiis magni minima vero accusantium cupiditate neque vitae doloribus maiores nesciunt expedita sed ab voluptate!
What are the key features?
High efficiency, reliable performance
High-speed tooth-and-claw impact crushing ensures smooth feeding without jamming-it's built for continuous operation. It handles everything from household use and livestock feed preparation to small-batch commercial processing.
Adjustable texture, uniform output
Simply swap the screen to choose your desired mesh size. It produces everything from coarse grits and meal to fine flour, delivering consistent particle size without uneven textures or stray coarse chunks.
Not just for corn
It handles dry corn, wheat, sorghum, beans, dried chili peppers, dried medicinal herbs, and various feed ingredients; basically, anything dry and brittle can be processed.
Easy to use-no training needed
The design is straightforward, making feeding and operation intuitive. You can master it at a glance-no special training required.
Easy to disassemble and repair-saves time and money
The crushing chamber cover, screen, and tooth-and-claw assembly are quick to remove and install. It uses standard parts available everywhere, keeping long-term maintenance costs low.
Excellent sealing-clean and dust-free
The sealed crushing chamber design prevents debris from scattering and minimizes airborne dust, keeping your workspace much cleaner.
|
|
|
|
|
Why Choose Lerford?
We are the manufacturer, so there are no middlemen adding markups. Our prices are fair, and we stand firmly behind the quality. The machines are built with robust, heavy-duty materials, making them highly reliable and durable.
We offer both diesel and electric models; they work perfectly even without three-phase power, making them ideal for mobile operations or use on small livestock farms. They handle a wide variety of materials without being picky.
The design is straightforward, so disassembling for cleaning or replacing parts is a breeze. We use standard parts that are easy to find on the market, ensuring maintenance costs remain low over the long run.
We'll help you select the right model before you buy and provide clear instructions on how to operate it afterward. Our supply chain is reliable, so you can purchase with confidence-we'll take care of everything else.
|
|
|
|
|
Powered by a diesel engine, this claw-type grinder operates independently of the electrical grid, allowing for unrestricted use across various work environments. It features robust construction and simple operation, capable of processing a wide range of dry raw materials with outstanding grinding performance and consistent output quality. With readily available parts and easy maintenance, the machine offers low long-term operating costs, balancing practicality with cost-effectiveness-making it an ideal choice for household livestock farming, small workshops, and mobile processing operations.
FAQ
What raw materials can this machine primarily process?
It mainly processes grains such as dried corn kernels, wheat, sorghum, and beans; it can also grind brittle, dry materials like dried chili peppers, dried stalks, and dried medicinal herbs.
Can it be used without a mains power supply?
Yes. This machine is diesel-powered and requires no electrical connection, allowing it to operate normally in mountainous areas, open fields, or during mobile processing operations in rural locations.
Can the output coarseness be adjusted?
Yes. By simply changing the screen mesh size, you can easily switch between different product fineness levels-such as corn grits, corn flour, or animal feed powder-while ensuring uniform particle size.
Is it suitable for both home use and commercial custom processing?
It is suitable for both. The machine is lightweight and portable, making it ideal for home grain grinding, feed production on farms, or generating income by taking on processing jobs in rural areas.
